HURCO DCX42i

Double Column Bridge Type Machining Center, DCX Series

The dual column DCX42i is the only machine in its class with the integrated Hurco control powered by WinMax. The double column design provides superior dynamic behavior and promotes thermal stability. Our control technology combined with our stringent design and manufacturing processes make the DCX42i an excellent investment. Exceptional cutting feed rates are achieved with patented high-speed motion technology – resulting in the fastest cut with the best surface finish.

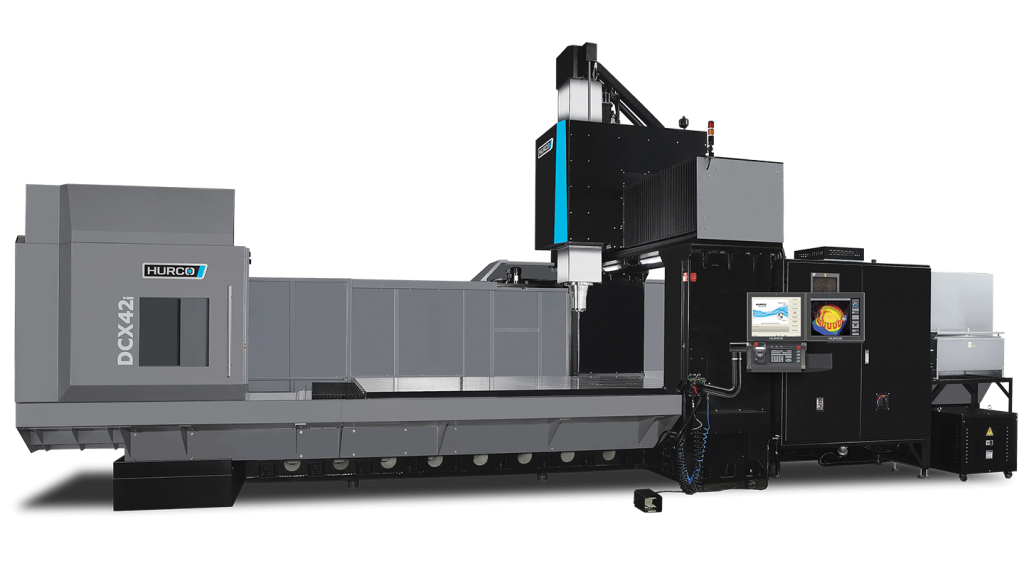

HURCO DCX42i Double Column Bridge Type Machining Center
HURCO DCX42i Double Column Bridge Type Machining Center, DCX Series The dual column DCX42i is the only machine in its class with the integrated Hurco control powered by WinMax.

HURCO DCX42i SpecificationsDetails
X, Y, Z -axis Travel165.4" x 102.4" x 43.3"
Table Working Surface157.5" x 82.7"
Maximum Table Load35,274 lbs.
Table T-Slots9 x .87" on 8.66" centers
Spindle Nose to Table6.30" to 49.60"
Distance Between Columns99.6"
Floor to Table Surface 37.68"
Spindle:DCX42i
Spindle TaperCAT 50
Spindle Speed6,000 RPM
Spindle Motor Horsepower (1 min.)80 HP
Spindle Motor Torque (1 min.)420 ft-lbs. @ 1000 RPM
Motion:DCX42i
Rapid Traverse Rate X & Y Axes (ipm)472 IPM
Rapid Traverse Rate Z Axis (ipm)394 IPM
Max Programmable Feedrate394 IPM
Positioning Accuracy (10 pass VDI 3441 Method).0010"
Repeatability (10 pass VDI 3441 Method).0006"
Toolchanger - Number of Stations40 Station
Maximum Operating Dimensions (W x D x H)485.3" x 264.4" x 196.3"
Machine Weight112,215 lbs.

Superior Features of the HURCO MAX5 CNC Control
