HURCO HTM30 Toolroom machine

The HTM30i features an open-bed design with a table that is easy to access. Also called a toolroom mill, this entry level machine includes all of the technology power of the MAX5 control.

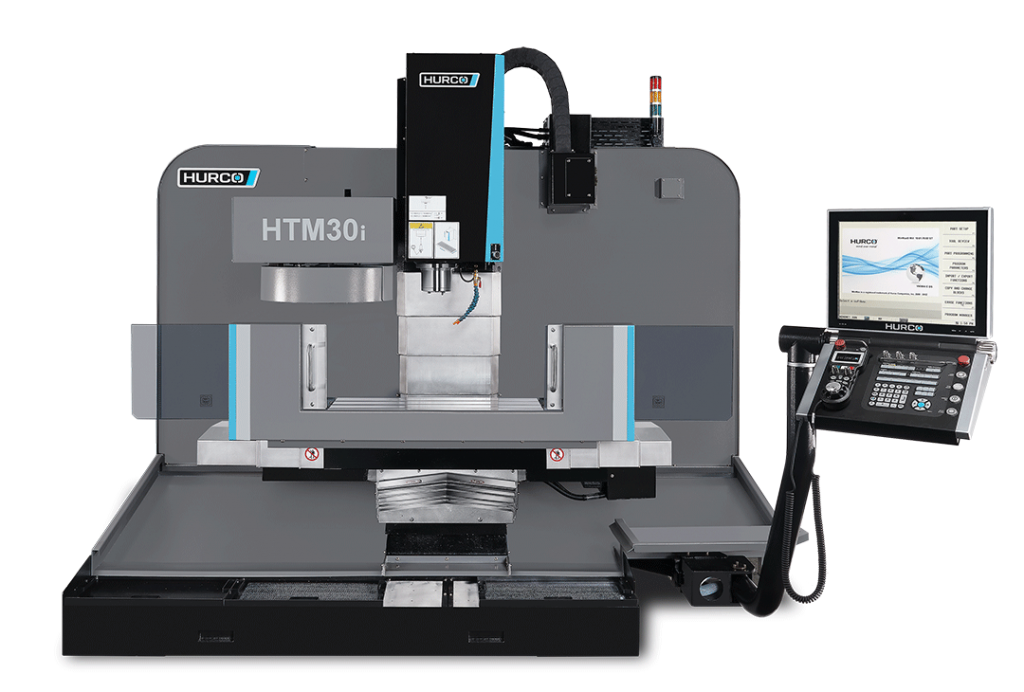

HURCO HTM30i Toolroom CNC Milling Machine

  Machine Specifications

X, Y, Z Axis Travel 30 x 17 x 18 in (760 x 430 X 460 mm)
Spindle Nose to Table 4 in min / 22 in max (100 mm min / 560 mm max)
Table Size 35.4 x 16.1 in (900 x 410 mm)
Max Weight On Table 992 lbs (450 kg)
T-Slot Size 0.63 in (16 mm)
Peak Spindle Motor 12 hp (9 kW)
8,000 RPM Spindle 42 ft-lbs @ 1,500 rpm (57 Nm @ 1,500 rpm)
Number Of Tools 16
Max Tool Diameter 4 in (100 mm)
Max Tool Length 11 in (280 mm)
Max Tool Weight 10 lb. (4.5 kg)
Max Programmable Feedrate 300 inches/minute (7.6 m/minute)
Rapid Traverse X,Y,Z Axis 500 in/min, 500 in/min, 300 in/min (12 m/minute, 12 m/minute, 7.6 m/minute)
Machine Height 110 in (2,797 mm)
Machine Weight 7,760 lbs (3,520 kg)


Request A Quote


Standard Machine Features

  • Wedge-locked Heavy duty Linear Rails for All Three Axes
  • Precision Ballscrews
  • 8,000 RPM Spindle
  • Air Purged Chrome-molly Alloy Cartridge Spindle with ABEC Class 7 Bearings
  • 500 ipm Rapid Traverse Rates
  • 16 pocket Carousel ATC
  • Work Light
  • Flood Coolant System
  • Metal Telescopic Way Covers
  • Rigid tapping
  • Winmax Classic
  • Table guard
  • Chip pan
  • Automatic Central Lubrication System
  • Modular One-Piece ITX Control Rack
  • 7GHz Dual Core Processor
  • 4GB RAM Memory
  • 128GB Solid State Hard Drive
  • 12 Months Parts / 6 Month Labor Warranty
