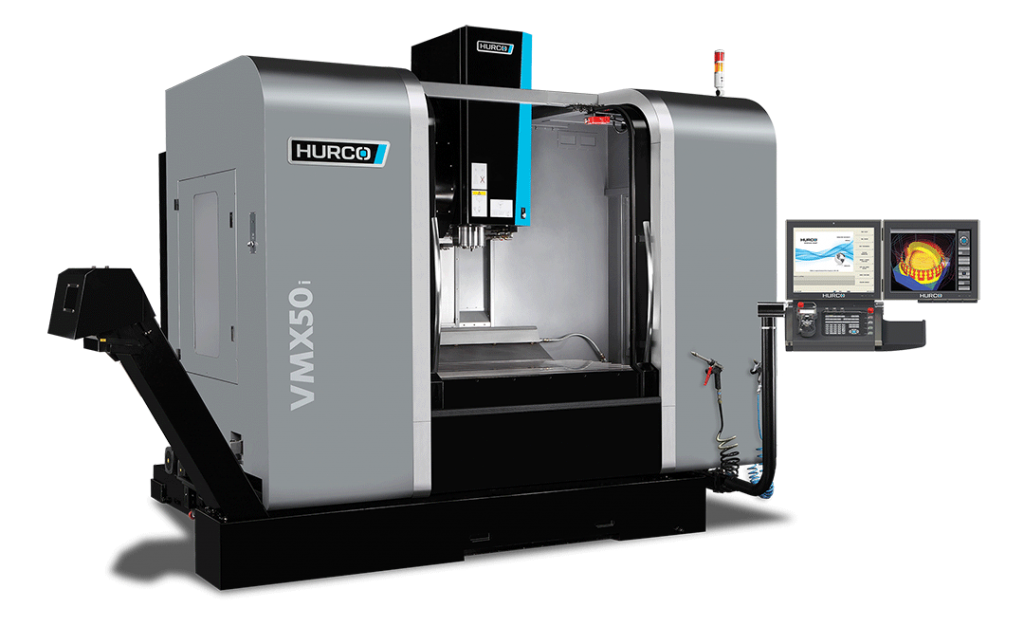

HURCO VMX50
Performance Machining Center VMXi Series

Our signature line of VMX machining centers takes machining to the next level. These machines deliver high performance capabilities to any machining application. Whether you are doing batch production or die/mold work, the VMX mills will make you more profitable.

HURCO VMX50i PERFORMANCE MACHINING CENTER VMXI SERIES

Machine Specifications

X, Y, Z Axis Travel 50 x 26 x 24 in (1,270 x 660 X 610 mm)
Spindle Nose to Table 6.0 in (152 mm)
Table Size 59 x 26 in (1,500 x 660 mm)
Max Weight On Table 3,000 lbs (1,360 kg)
T-Slot Size 6 x .71 in (6 x 18 mm)
Peak Spindle Motor 24 hp (18 kW)
10,000 RPM Spindle 210 ft-lbs @ 600 rpm (284 Nm @ 600 rpm)
12,000 RPM Spindle 175 ft-lbs @ 720 rpm (237 Nm @ 720 rpm)
15,000 RPM Spindle 140 ft-lbs @ 900 rpm (190 Nm @ 900 rpm)
Number Of Tools 30 or 40
Tool Type CAT 40
Max Tool Diameter 3.1 in (78.7 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lbs (7 kg)
Max Programmable Feedrate 787 inches/minute (20 m/minute)
Rapid Traverse X,Y,Z Axis 1,181 in/min, 1,181 in/min, 787 in/min (30 m/minute, 30 m/minute, 20 m/minute)
Machine Height 118.6 in (3,013.1 mm)
Required Floor Space 204.6 x 181.9 in (5,195.6 x 4,621.5 mm)
Machine Weight 17,900 lbs (8,136 kg)


Superior Features of the HURCO MAX5 CNC Control
