HURCO VM10 Vertical Machining Center

The Hurco VM series of 3-axis machining centers features a small footprint with a large work cube. No other mill packs as much productivity into such an efficiently designed package.

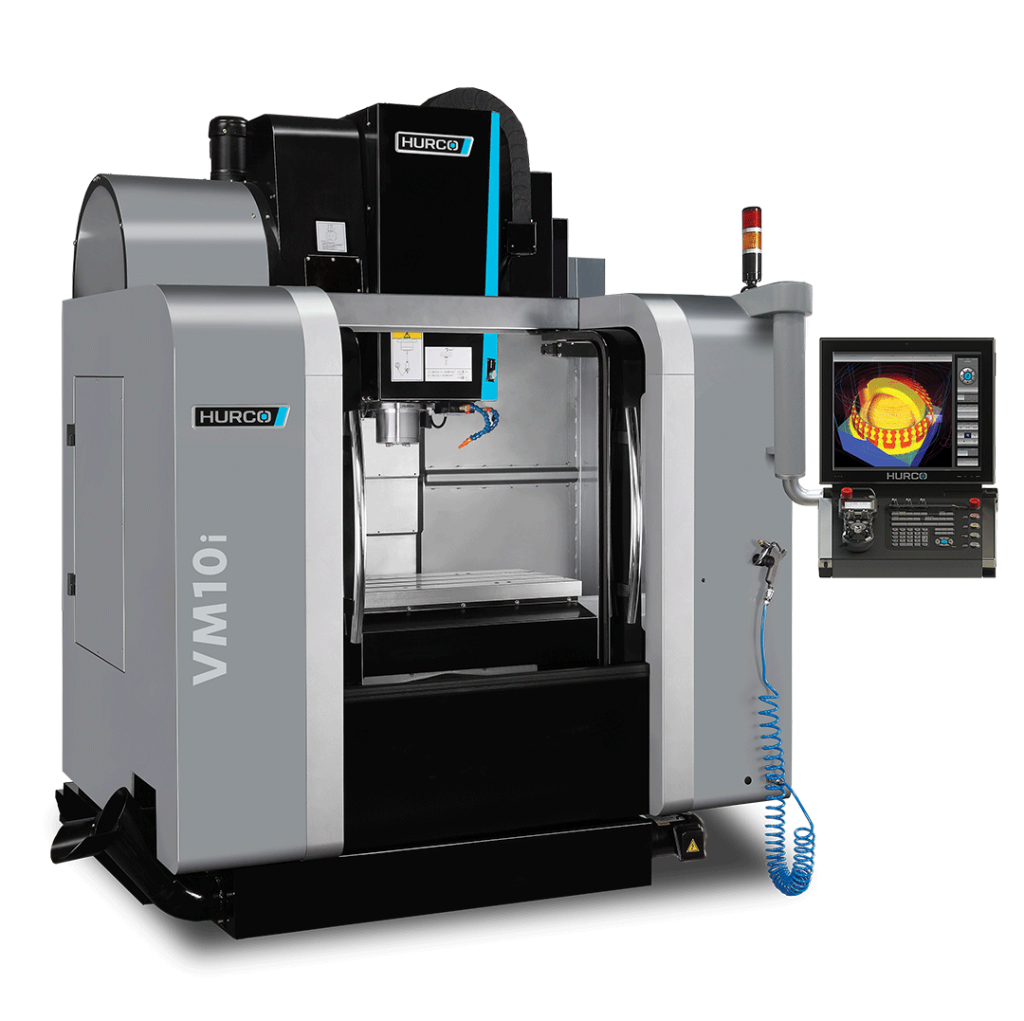

HURCO VM10i Vertical Machining Center
X, Y, Z Axis Travel 26 x 16 x 20 in (660 x 406 X 508 mm)
Spindle Nose to Table 4.0 in (101.6 mm)
Table Size 30 x 16 in (762 x 406 mm)
Max Weight On Table 1,500 lbs (680 kg)
T-Slot Size 3 x 0.71 in (3 x 18 mm)
Peak Spindle Motor 15 hp (11.0 kW)
Spindle – 10,000 RPM 54 ft/lbs @ 1,450 rpm (73.6 Nm @ 1,450 rpm)
Number Of Tools 20
Tool Type CAT 40 (BT 40)
Max Tool Diameter 3.5 in (90 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight 15.4 lb (7 kg)
Max Programmable Feedrate 945 inches/minute (24 m/minute)
Rapid Traverse X,Y,Z Axis 945 in/min, 945 in/min, 945 in/min (24 m/minute, 24 m/minute, 24 m/minute)
Machine Height 99.6 in (2,530 mm)
Required Floor Space 118.1 x 113.8 in (3,000 x 2,890.5 mm)
Machine Weight 6,200 lbs – (2,818 kg)
  • Heavily Ribbed Fine-Grade Cast Iron Frame Optimized with Finite Element Analysis (FEA)
  • Wedge-locked Heavy duty Linear Rails for All Three Axes
  • Direct Drive Z axis with Regenerative Brake – No Counterbalance
  • Precision Ballscrews
  • 10,000 RPM AC Spindle Motor
  • CAT 40 / Big Plus Spindle
  • Air Purged Chrome-molly Alloy Cartridge Spindle with ABEC Class 7 Bearings
  • Yaskawa Sigma V Digital AC Servos
  • Fast 945 ipm Rapid Traverse Rates
  • Electric Swing-arm 20 Station ATC – Random Access
  • 2.5 Second Tool-to-Tool ATC Time
  • Full Enclosure with Wide Front Access and Side Access Doors
  • LED Work Light
  • Door Safety Interlocks / ANSI B11.23
  • Flood Coolant System
  • Pistol-style Coolant and Air Guns
  • Metal Telescopic Way Covers
  • Automatic Central Lubrication System
  • Power Cabinet Heat Exchanger
  • Way Lube Separation System
  • Modular One-Piece ITX Control Rack
  • 2.7GHz Dual Core Processor
  • 4GB RAM Memory
  • 128GB Solid State Hard Drive
