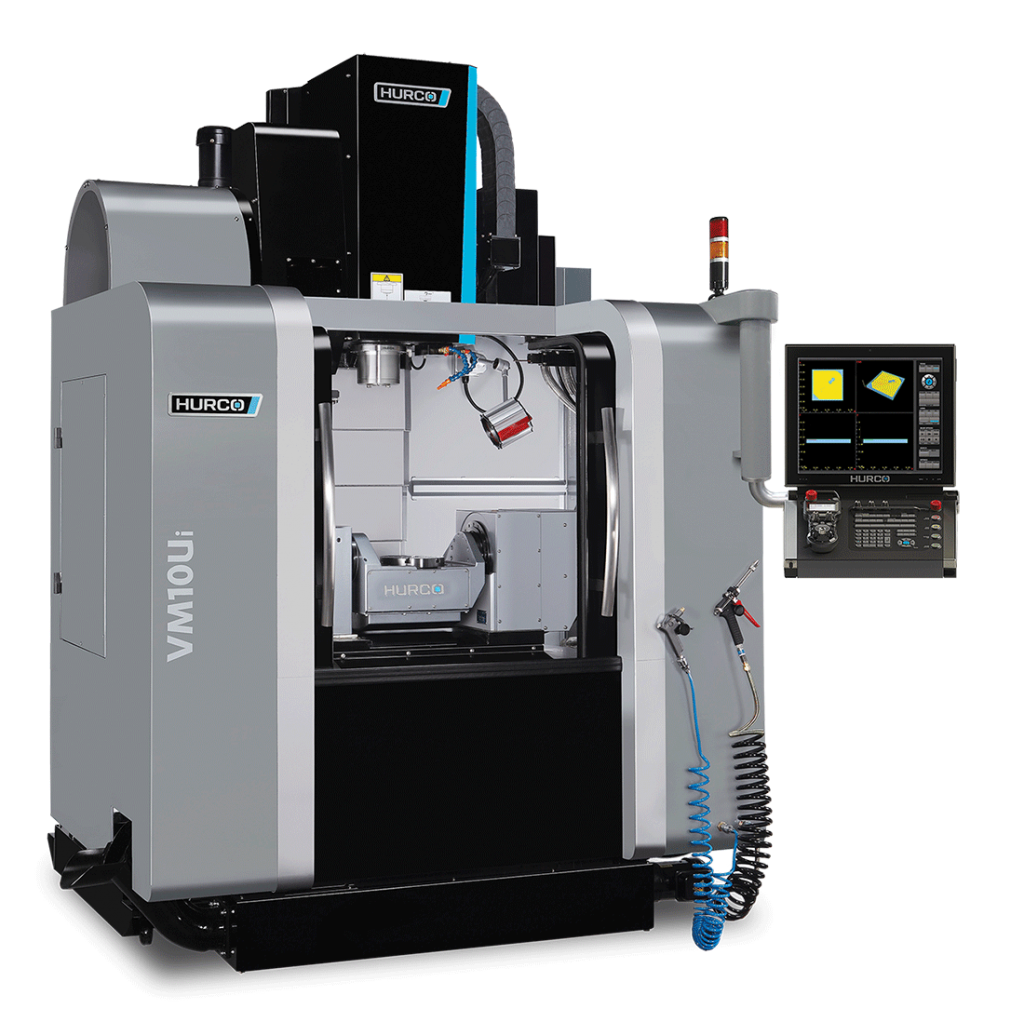

HURCO VM10U Five Axis
5-Axis Trunnion Style Machine
The Hurco VM10Ui 5-Axis trunnion style machining center is an ideal configuration for 5-sided machining. The integrated trunnion table design provides more clearance in Z for larger part capacity compared to other brands. With more standard features than other 5-axis machines, the trunnion style machining center is a perfect fit for 5-sided work. Exceptional cutting feed rates are achieved with patented high-speed motion technology – resulting in the fastest cut with the best surface finish.
| HURCO VM10Ui Specifications | Details |
|---|---|
| X, Y, Z -axis Travel | 21" x 16" x 19" |
| Table Working Surface | 7.8" Diameter / Center bore 51mm |
| Maximum Table Load | 330 lbs. |
| Spindle Nose to Table | 1.4" to 20.4" |
| A Axis Motion in Degrees | +30 to -110 |
| C Axis Motion | 360 Degrees |
| Maximum Part Size ? x H | 12.6” x 10” |
| Spindle Taper | CAT 40 / Big Plus |
| Spindle Speed | 10,000 RPM |
| Spindle Motor Horsepower (1 min.) | 15 HP |
| Spindle Motor Torque (1 min.) | 42 Ft. lbs @ 1500 RPM |
| Rapid Traverse Rate X,Y / Z (ipm) | 945 all axes |
| Positioning Accuracy (10 pass VDI 3441 Method) | -/+ 0.0002” |
| Repeatability (10 pass VDI 3441 Method) | -/+ 0.0001” |
| Positioning Accuracy with Optional Linear Scales (10 pass VDI 3441 Method) | .0002" |
| Repeatability with Optional Linear Scales (10 pass VDI 3441 Method) | .00016" |
| Positioning Accuracy A Axis / C Axis | +/- 7 Arc-seconds |
| Repeatability Accuracy A Axis / C Axis | 7 Arc-seconds |
| Toolchanger - Number of Stations | 20 / CAT 40 |
| Tool to Tool ATC Time | 2.5 Seconds |
| Machine Weight | 7,392 lbs |
