HURCO VM20 Vertical Machining Center

The Hurco VM CNC vertical milling machines offer powerful machining with a compact footprint, and absolutely the best value on the market. These CNC machining centers are the perfect combination of size and functionality.  The larger work cube provides impressive X travel while not demanding excessive floor space.

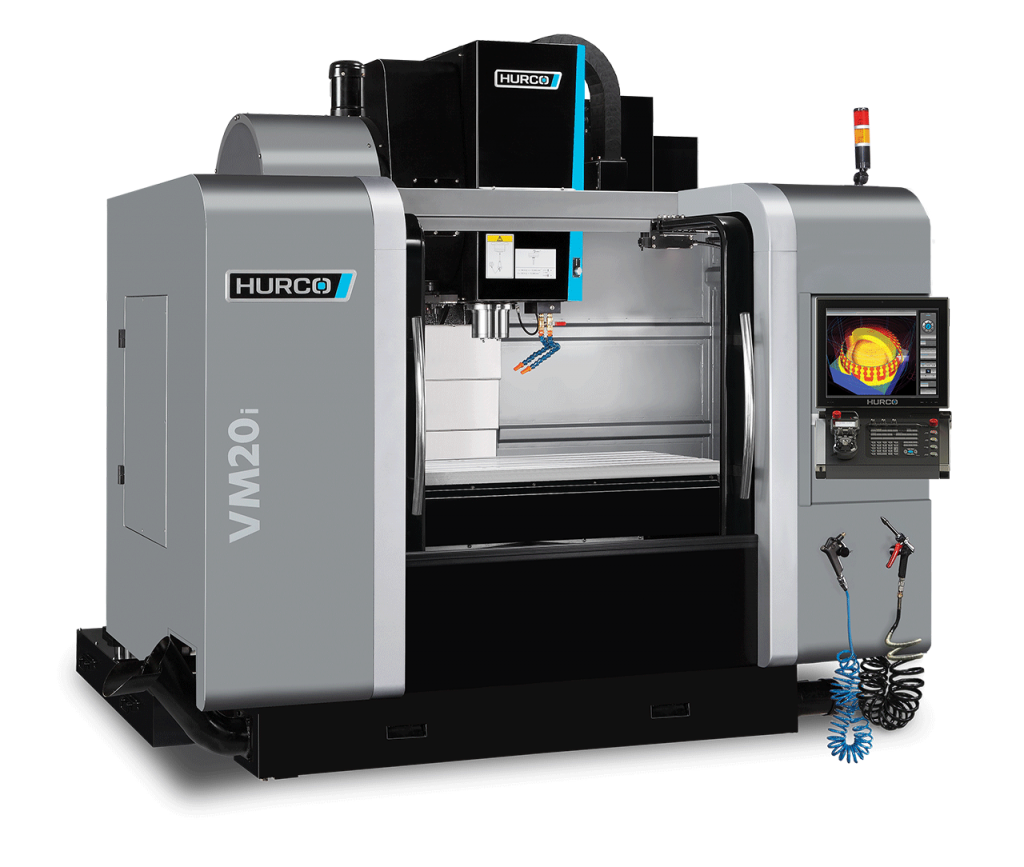

HURCO VM20i Vertical Machining Center

 Machine Specifications

X, Y, Z Axis Travel 40 x 20 x 20 in (1,016 x 508 X 508 mm)
Spindle Nose to Table Min/Max 4.0 in / 24 in (101.6 mm / 609.6)
Table Size 46 x 20 in (1,168 x 508 mm)
Max Weight On Table 2,000 lbs (907 kg)
T-Slot Size 5 x .71 in (5 x 18 mm)
Peak Spindle Motor 20 hp (15.0 kW)
10k 75 ft-lbs @ 1,450 rpm (102 Nm @ 1,450 rpm)
Number Of Tools 20
Tool Type CAT 40
Max Tool Diameter 3.5 in (90 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight 15.4 lb. (7 kg)
Max Programmable Feedrate 945 inches/minute (24 m/minute)
Rapid Traverse X,Y,Z Axis 945 in/min, 945 in/min, 945 in/min (24 m/minute, 24 m/minute, 24 m/minute)
Machine Height 101.5 in (2,576 mm)
Required Floor Space 145.8 x 118.4 in (3,703.3 x 3,007.4 mm)
Machine Weight 9,039 lbs (4,100 kg)


Request A Quote


Standard Machine Features

  • Heavily Ribbed Fine-Grade Cast Iron Frame Optimized with Finite Element Analysis (FEA)
  • Wedge-locked Heavy duty Linear Rails for All Three Axes
  • Direct Drive Z axis with Regenerative Brake – No Counterbalance
  • Precision Ballscrews
  • 10,000 RPM AC Spindle Motor
  • CAT 40 / Big Plus Spindle
  • Air Purged Chrome-molly Alloy Cartridge Spindle with ABEC Class 7 Bearings
  • Yaskawa Sigma V Digital AC Servos
  • Fast 945 ipm Rapid Traverse Rates
  • Electric Swing-arm 20 Station ATC – Random Access
  • 5 Second Tool-to-Tool ATC Time
  • Full Enclosure with Wide Front Access and Side Access Doors
  • LED Work Light
  • Door Safety Interlocks / ANSI B11.23
  • Flood Coolant System
  • Pistol-style Coolant and Air Guns
  • Metal Telescopic Way Covers
  • Automatic Central Lubrication System
  • Power Cabinet Heat Exchanger
  • Way Lube Separation System
  • Modular One-Piece ITX Control Rack
  • 7GHz Dual Core Processor
  • 4GB RAM Memory
  • 128GB Solid State Hard Drive
  • 12 Months Parts / 6 Month Labor Warranty
