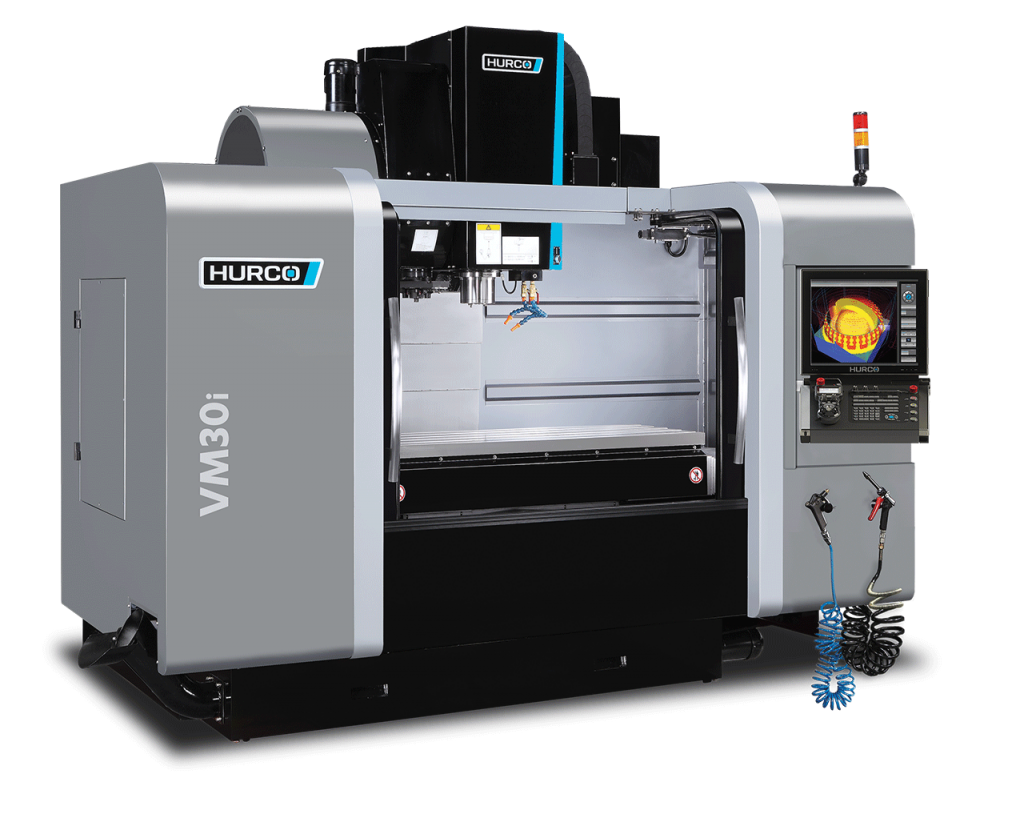

HURCO VM30 Vertical Machining Center
The Hurco VM CNC vertical milling machines offer powerful machining with a compact footprint, and absolutely the best value on the market. These CNC machining centers are the perfect combination of size and functionality. The larger work cube provides impressive X travel while not demanding excessive floor space.
| X, Y, Z Axis Travel | 50 x 20 x 20 in (1,270 x 508 X 508 mm) |
| Spindle Nose to Table | 4.0 in (101.6 mm) |
| Table Size | 52 x 20 in (1,321 x 508 mm) |
| Max Weight On Table | 2,000 lbs (907 kg) |
| T-Slot Size | 5 x .71 in (5 x 18 mm) |
| Peak Spindle Motor | 20 hp (15.0 kW) |
| Spindle 10,000 RPM | 75 ft-lbs @ 1,450 rpm (102 Nm @ 1,450 rpm) |
| Number Of Tools | 20 |
| Tool Type | CAT 40 |
| Max Tool Diameter | 3.5 in (90 mm) |
| Max Tool Length | 9.8 in ( 250 mm) |
| Max Tool Weight | 15.4 lb (7 kg) |
| Max Programmable Feedrate | 945 inches/minute (24 m/minute) |
| Rapid Traverse X,Y,Z Axis | 945 in/min, 945 in/min, 945 in/min (24 m/minute, 24 m/minute, 24 m/minute) |
| Machine Height | 101.4 in (2,575.8 mm) |
| Required Floor Space | 160.7 x 108 in (4,083 x 2,742.7 mm) |
| Machine Weight | 9,339 lbs (4,245 kg) |
Standard Machine Features
- Heavily Ribbed Fine-Grade Cast Iron Frame Optimized with Finite Element Analysis (FEA)
- Wedge-locked Heavy duty Linear Rails for All Three Axes
- Direct Drive Z axis with Regenerative Brake – No Counterbalance
- Precision Ballscrews
- 10,000 RPM AC Spindle Motor
- CAT 40 / Big Plus Spindle
- Air Purged Chrome-molly Alloy Cartridge Spindle with ABEC Class 7 Bearings
- Yaskawa Sigma V Digital AC Servos
- Fast 945 ipm Rapid Traverse Rates
- Electric Swing-arm 20 Station ATC – Random Access
- 5 Second Tool-to-Tool ATC Time
- Full Enclosure with Wide Front Access and Side Access Doors
- Right and Left Side LED Work Lights
- Door Safety Interlocks / ANSI B11.23
- Flood Coolant Standard
- Pistol-style Coolant and Air Guns
- Metal Telescopic Way Covers
- Automatic Central Lubrication System
- Power Cabinet Heat Exchanger
- Way Lube Separation System
- Modular One-Piece ITX Control Rack
- 7GHz Dual Core Processor
- 4GB RAM Memory
- 128GB Solid State Hard Drive
- 12 Months Parts / 6 Month Labor Warranty
