HURCO VM5 Vertical Machining Center

The Hurco VM5i is the smallest of the VM series of 3-axis machining centers.  It features a small footprint with a large work cube. No other mill packs as much productivity into such an efficiently designed package.

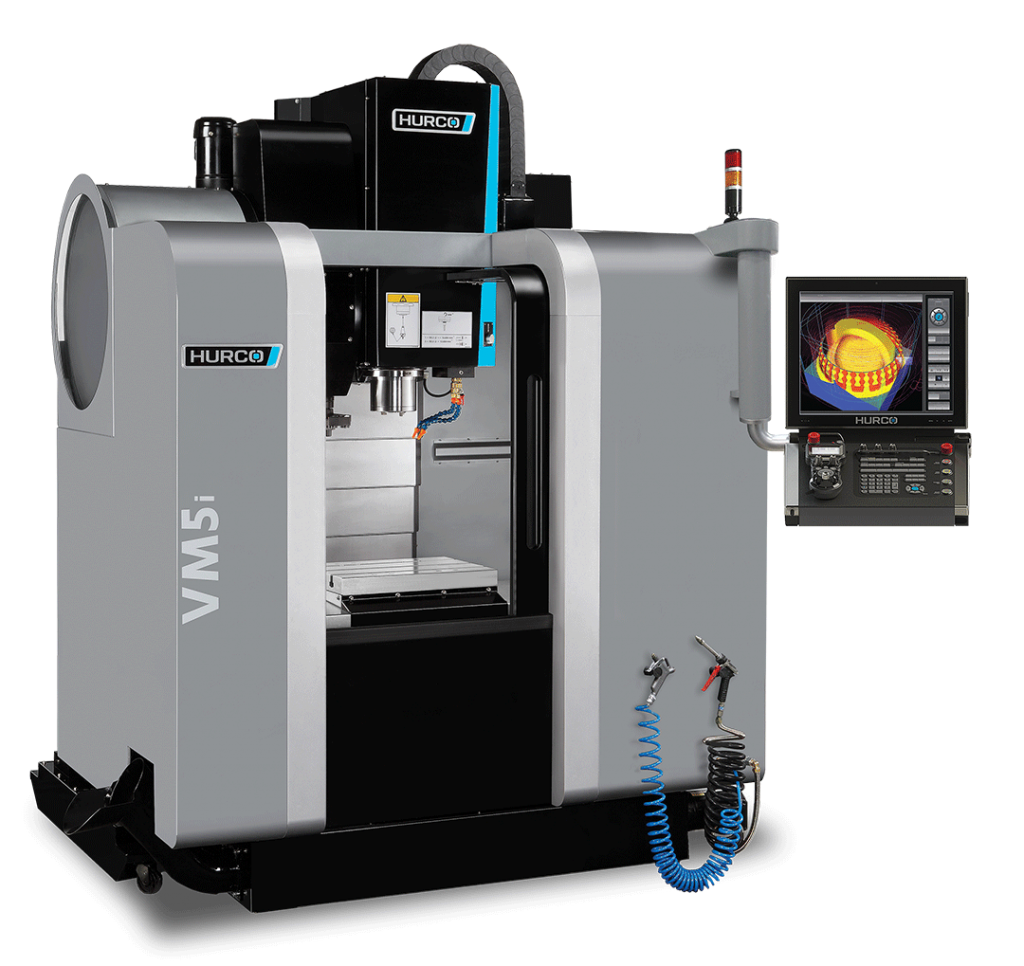

HURCO VM5i Vertical Machining Center

 Machine Specifications

X, Y, Z Axis Travel 18 x 14 x 14 in (457 x 356 x 356 mm)
Spindle Nose to Table 4.0 in (101.6 mm)
Table Size 18 x 14 in (457 x 356 mm)
Max Weight On Table 500 lbs (227 kg)
T-Slot Size 3 x .71 in (3 x 18 mm)
Peak Spindle Motor 10 hp @ 1,450 rpm (7.5 kW @ 1,450 rpm)
8k 36 ft lbs (48.8 Nm @ 1,450 rpm)
Number Of Tools 16
Tool Type CAT 40
Max Tool Diameter 3.5 in (90 mm)
Max Tool Length 7.9 in (200 mm)
Max Tool Weight 15.4 lb. (7 kg)
Max Programmable Feedrate 748 inches/minute (19 m/minute)
Rapid Traverse X,Y,Z Axis 748 in/min, 748 in/min, 748 in/min (19 m/minute, 19 m/minute, 19 m/minute)
Machine Height 94.1 in (2,390.1 mm)
Required Floor Space 64.3 x 114.3 in (1,633.2 x 2,903.2 mm)
Machine Weight 5,800 lbs (2,630 kg)
