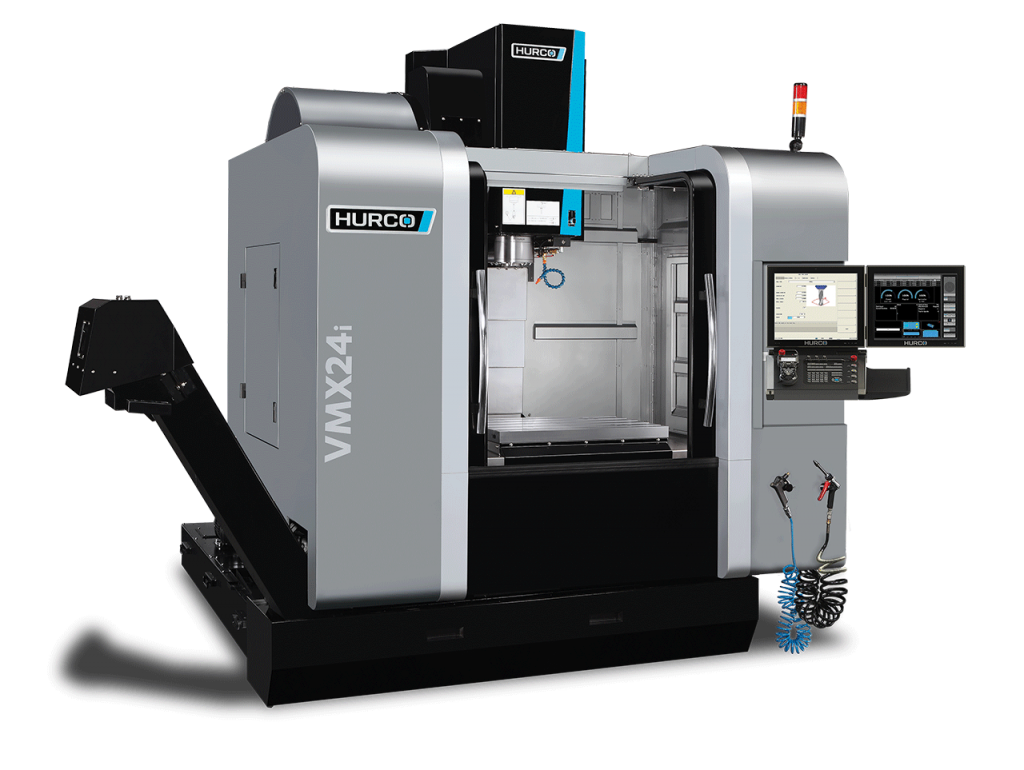

HURCO VMX24
Performance Machining Center VMXi Series

Our signature line of VMX machining centers takes machining to the next level. These machines deliver high performance capabilities to any machining application.

HURCO VMX24i PERFORMANCE MACHINING CENTER VMXI SERIES

  Machine Specifications

X, Y, Z Axis Travel 24 x 20 x 24 in (610 x 508 x 610 mm)
Spindle Nose to Table 6.0 in (152 mm)
Table Size 30 x 20 in (760 x 508 mm)
Max Weight On Table 3,000 lbs (1,360 kg)
T-Slot Size 5 x .71 in (5 x 18 mm)
Peak Spindle Motor 12 hp @ 900 rpm (9 kW @ 900 rpm)
12,000 RPM Spindle 70 ft-lbs @ 900 rpm (95 Nm @ 900 rpm)
Number Of Tools 30
Tool Type CAT 40
Max Tool Diameter 3.1 in (79 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)
Max Programmable Feedrate 1,181 inches/minute (30 m/minute)
Rapid Traverse X,Y,Z Axis 1,378, 1,378, 1,181 in/min (35, 35, 30 m/minute)
Machine Height 108.2 in (2,747 mm)
Required Floor Space 155.1 x 156.5 in (3,939 x 3,974 mm)
Machine Weight 10,468 lbs (4,748 kg)


Superior Features of the HURCO MAX5 CNC Control
