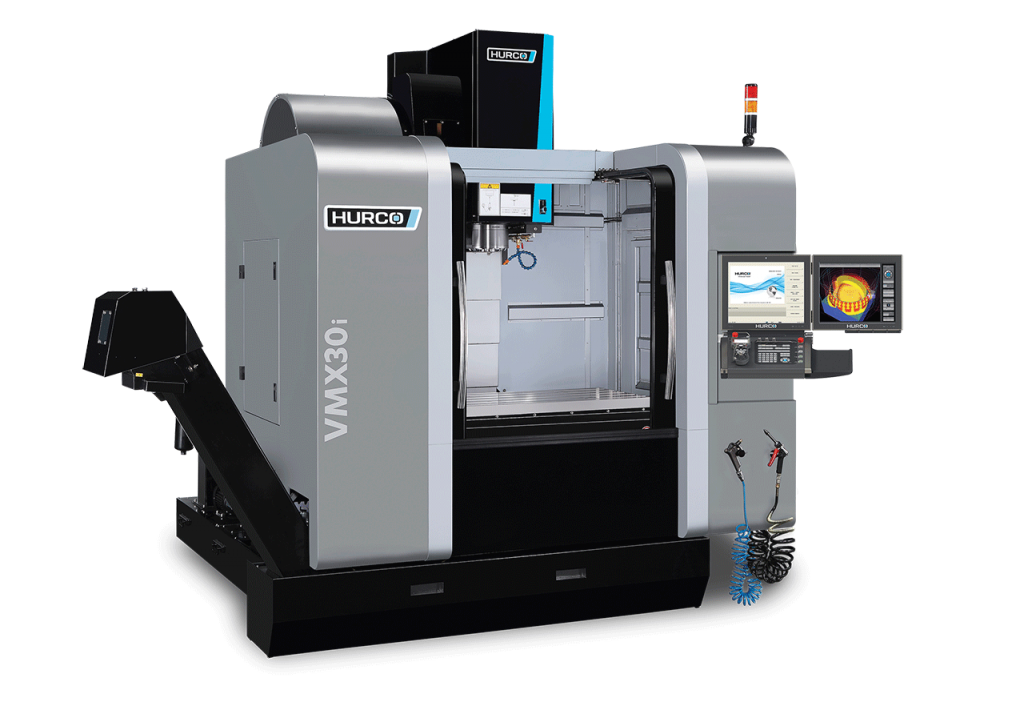

HURCO VMX30
Performance Machining Center VMXi Series

Our signature line of VMX machining centers takes machining to the next level. These machines deliver high performance capabilities to any machining application.

HURCO VMX30i PERFORMANCE MACHINING CENTER VMXI SERIES

Machine Specifications

X, Y, Z Axis Travel 30 x 20 x 24 in (762 x 508 X 610 mm)
Spindle Nose to Table 6.0 in (152 mm)
Table Size 40 x 20 in (1,020 x 508 mm)
Max Weight On Table 3,000 lbs (1,360 kg)
T-Slot Size 5 x .71 in (5 x 18 mm)
Peak Spindle Motor 18 hp @ 600 rpm (13.4 kW @ 600 rpm)
10,000 RPM Spindle 185 ft-lbs @ 500 rpm (250 Nm @ 500 rpm)
12,000 RPM Spindle 158 ft-lbs @ 600 rpm (214 Nm @ 600 rpm)
15,000  RPM Spindle 126 ft-lbs @ 750 rpm (171 Nm @ 750 rpm)
Number Of Tools 30
Tool Type CAT 40
Max Tool Diameter 3.1 in (79 mm)
Max Tool Length 11.8 in (300 mm)
Max Tool Weight 15.4 lb (7 kg)
Max Programmable Feedrate 1,181 inches/minute (30 m/minute)
Rapid Traverse X,Y,Z Axis 1,378 in/min, 1,378 in/min, 1,181 in/min (35 m/minute, 35 m/minute, 30 m/minute)
Machine Height 108.2 in ( 2,747 mm)
Required Floor Space 155.1 x 156.5 in (3,939 x 3,974 mm)
Machine Weight 10,692 lbs (4,850 kg)


Superior Features of the HURCO MAX5 CNC Control
