HURCO VMX60U Five Axis

5-Axis Trunnion Style Machine

The Hurco VMX60Ui 5-Axis trunnion style machining center is an ideal configuration for 5-sided machining. The integrated trunnion table design provides more clearance in Z for larger part capacity compared to other brands. High torque, fast feed rates, and more standard features than other 5-axis machines makes the trunnion style machining center a perfect fit for 5-sided work. Exceptional cutting feed rates are achieved with patented high-speed motion technology – resulting in the fastest cut with the best surface finish.

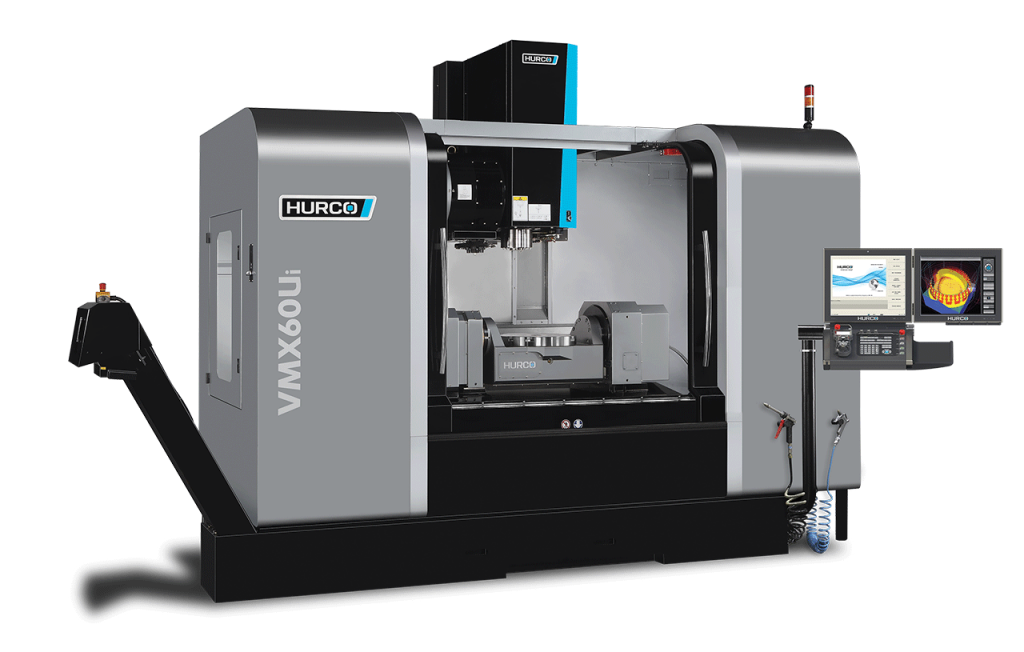

HURCO VMX60Ui 5-Axis Trunnion Style Machine

HURCO VMX60Ui SpecificationsDetails
X, Y, Z -axis Travel60” x 26” x 20.5”
Table Working Surface19.7” Diameter
Maximum Table Load880 lbs.
Spindle Nose to Table3.5" to 24"
A Axis Motion in Degrees+30 to -110
C Axis Motion360 Degrees
Maximum Part Size ? x H23.6” x 13.8”
Spindle TaperCAT 40
Spindle Speed12,000 RPM
Spindle Motor Horsepower (1 min.)24 HP
Spindle Motor Torque (1 min.)175 Ft lbs @ 720 RPM
High Torque Option RPM10,000 RPM
High Torque Option Rating210 ft-lb @ 600 RPM
Rapid Traverse Rate X,Y1,181 ipm
Rapid Traverse Rate Z 787 ipm
Toolchanger - Number of Stations40 Station
Machine Weight18,800 lbs

Superior Features of the HURCO MAX5 CNC Control
