HURCO VMX64

Performance Machining, VMXi Series
Available with 40 or 50 Taper Spindle

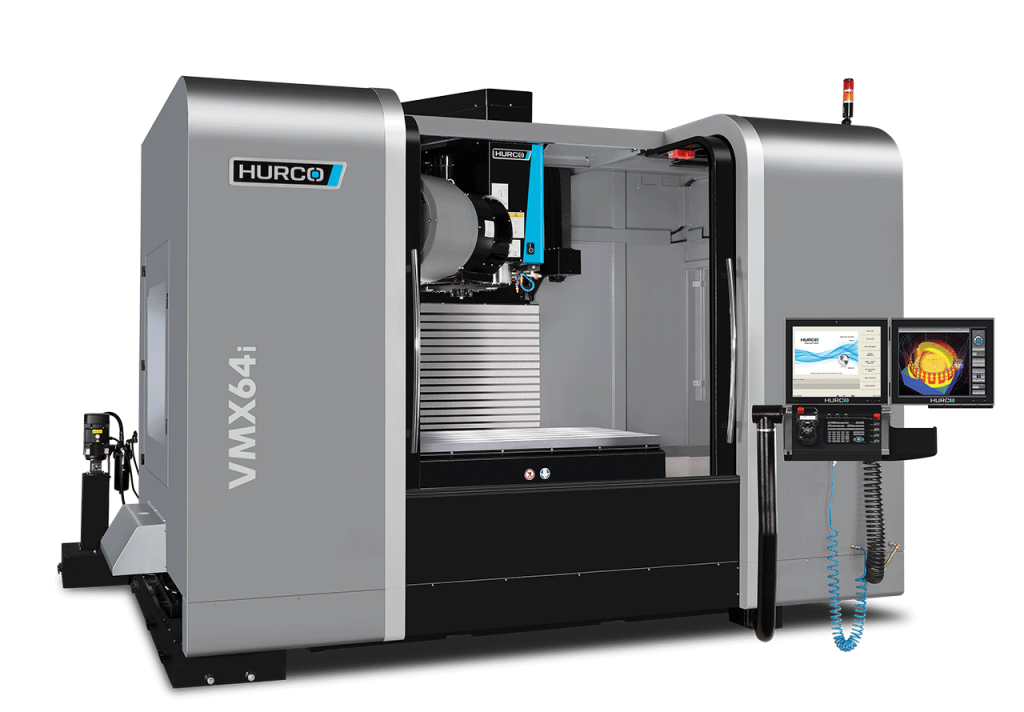

The Hurco VMX64i CNC machining center is the perfect combination of performance and flexibility. With its large work cube, it allows more flexibility for a wider variety of work. High torque, fast feed rates, and a heavy rigid frame allow for the best quality and performance for almost any application. Exceptional cutting feed rates are achieved with patented high-speed motion technology – resulting in the fastest cut with the best surface finish.

HURCO VMX64i Performance Machining, VMXi Series
HURCO VMX64i PERFORMANCE MACHINING CENTER VMXI SERIES

HURCO VMX64i Capacity:VMX64i 40 taperVMX64i 50 taper
X, Y, Z -axis Travel64” x 34” x 30”64” x 34” x 30”
Table Working Surface66” x 35”66” x 35”
Maximum Table Load6000 lbs.6,000 lbs.
Spindle Nose to Table6” to 36”6” to 36”
Spindle TaperCAT 40 / Big PlusCAT 50 / Big Plus
Spindle Speed12,000 RPM8,000 RPM
Spindle Motor Horsepower (1 min.)24 HP29.7 HP
Spindle Motor Torque (1 min.)175 ft-lbs. @ 720 RPM260 ft-lb at 600 RPM
High Torque Option RPM10,000 RPM6,500 RPM
High Torque Option Rating210 ft-lb @ 600 RPM311 ft-lb @ 500 RPM
Rapid Traverse Rate X,Y (ipm)709 ipm709 ipm
Rapid Traverse Rate Z (ipm)530 ipm530 ipm
Max Programmable Feedrate530 ipm530 ipm
Number of Stations3032
Tool to Tool ATC Time2 Seconds4 Seconds
Floor Space Required (W x D x H)155.0” x 107.7” x 128.4”155.0” x 107.7” x 128.4”
Machine Weight30,415 lbs 32,000 lbs

Superior Features of the HURCO MAX5 CNC Control
