HURCO VTXU Five Axis

5-Axis Trunnion Style Machine

The Hurco VTXUi 5-Axis traveling column trunnion style machining center is an ideal configuration for 5-sided machining. The integrated trunnion table design provides more clearance in Z for larger part capacity compared to other brands. High torque, fast feed rates, and more standard features than other 5-axis machines makes the trunnion style machining center a perfect fit for 5-sided work. Exceptional cutting feed rates are achieved with patented high-speed motion technology – resulting in the fastest cut with the best surface finish.

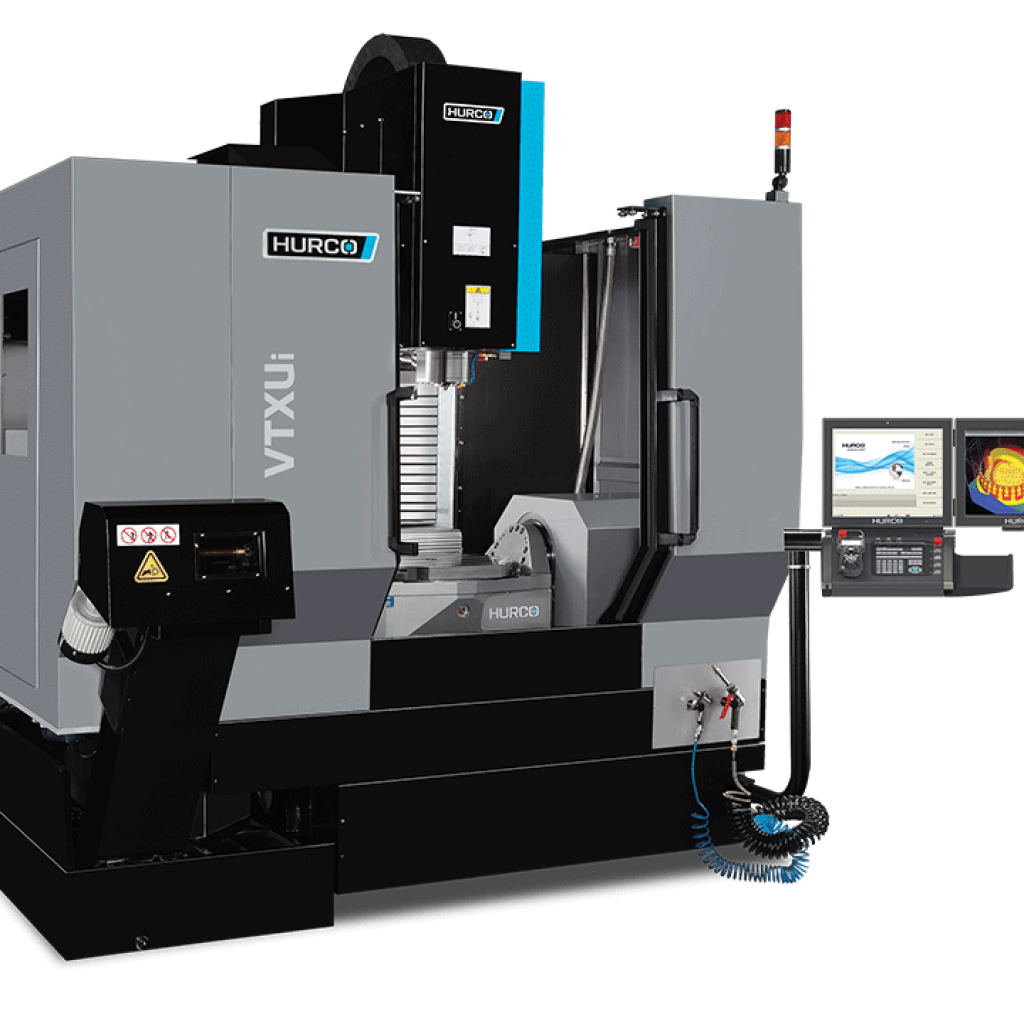

HURCO VTXUi 5-Axis Trunnion Style Machine
HURCO VTXUi 5-Axis Trunnion Style Machine

HURCO VTXUi SpecificationsDetails
X, Y, Z -axis Travel31.5" x 27.6" x 20"
Table Working Surface23.6” x 19.7”
Maximum Table Load880 lbs.
Spindle Nose to Table5.9” to 26”
C Axis Motion in Degrees360 Degrees
A Axis Motion+30 to -110
Floor to Table Surface42.7"
Spindle TaperCAT 40
Spindle Speed12,000 RPM
Spindle Motor Horsepower (1 min.)24 HP
Spindle Motor Torque (1 min.)175 Ft. lbs @ 720 RPM
Rapid Traverse Rate X,Y and Z 1,378 ipm
Least Command Increment0.0001”
A/C Axis Max RPM16.6 RPM
Positioning Accuracy (10 pass VDI 3441 Method)-/+ 0.0002”
Repeatability (10 pass VDI 3441 Method) -/+ 0.0001”
Positioning Accuracy A/C Axis+/- 7 Arc-seconds
Repeatability Accuracy A/C Axis7 Arc-seconds
Toolchanger - Number of Stations48
Machine Weight27,560 lbs

Superior Features of the HURCO MAX5 CNC Control
