VC500i 5-Axis MC

VC / VCX Series

5-Axis CNC mill with cantilever design supports a wide range of parts.

The B-axis provides superb undercutting ability with a full 110° in both positive and negative directions. Solid one-piece cast iron frame optimized with both static and dynamic Finite Element Analysis (FEA).

The 5-Axis VC Series B-axis trunnion style configuration will allow for shorter tools to be utilized when cutting smaller parts. When cutting smaller parts on a traditional A-axis trunnion, the tools approach the part from behind the A-axis trunnion. This means when running smaller 5-Axis parts on larger machines, the operator is forced to use longer tools for clearance. Since a B-axis trunnion tilts around the Y-axis, the tool is always approaching the part from a safe direction and the possibility for interference is much less.

  • VC500i – Travel (X, Y, Z): 20.5 x 17.7 x 15.8
  • VCX600i – Travel (X, Y, Z): 24 x 20.5 x 19 in
Hurco VMX30Ui 5-Axis trunnion style machining center

U Series

Trunnion Table 5-Axis Makes 5-Sided Machining Easy

The efficient design of the Hurco 5-axis trunnion table machining centers (U Series) is a key benefit to consider—we use an integrated trunnion table instead of simply sticking a trunnion table on a 3-axis machining center and passing it off as a 5-axis CNC machine. The integrated trunnion table design provides more clearance in the Z-axis compared to other brands.

  • VM10Ui – Travel (X, Y, Z): 21 x 16 x 19 in
  • VM10UHSi – Travel (X, Y, Z): 21 x 16 x 19 in
  • VMX30Ui – Travel (X, Y, Z): 30 x 20 x 20.5 in
  • VMX30UHSi – Travel (X, Y, Z): 30 x 20 x 20.5 in

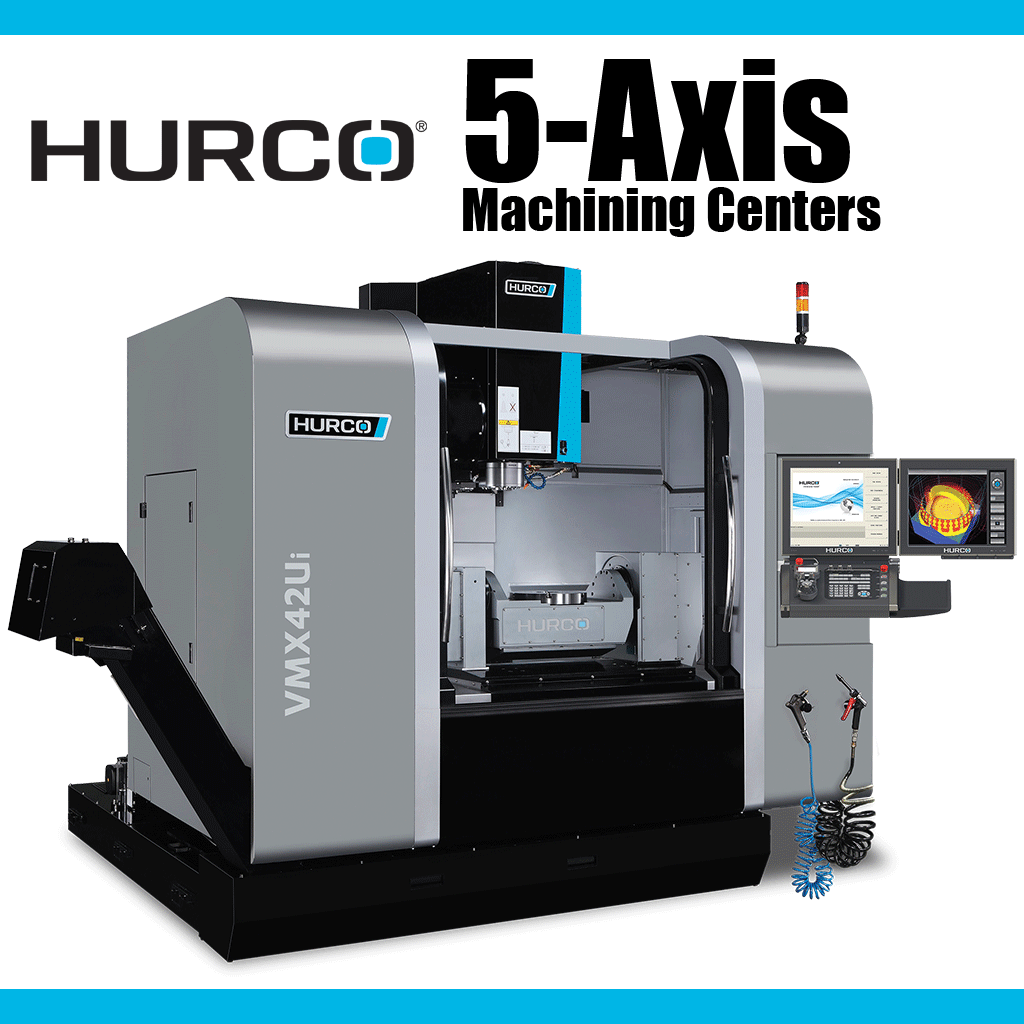

  • VMX42Ui – Travel (X, Y, Z): 42 x 24 x 20.5 in
  • VMX42UHSi – Travel (X, Y, Z): 42 x 24 x 20.5 in
Hurco VMX42SRTi 5-Axis with Tilting Spindle and Built in Rotary Table

SRT / SW Series

5-Axis CNC Machines That Offer Maximum Flexibility

The SRTi series of 5-axis CNC machines offers multiple advantages, starting with the machine’s design configuration that utilizes a swivel head and a C-axis rotary torque table that is embedded in the machine table and flush with the surface. The generous size the machine table provides maximum versatility because you can use the extra table space for secondary operations or 3-axis CNC work. This configuration is also available in an SW model that utilizes the swivel head, traditional machine table, and an add-on A-axis rotary.

  • VMX42HSRTi – Travel (X, Y, Z): 42 x 24 x 24 in
  • VMX42SRTi – Travel (X, Y, Z): 42 x 24 x 24 in
  • VMX60SRTi – Travel (X, Y, Z): 60 x 26 x 24 in
  • VMX42SWi – Travel (X, Y, Z): 42 x 24 x 24 in
  • VMX60SWi – Travel (X, Y, Z): 60 x 26 x 24 in
  • VMX84SWi – Travel (X, Y, Z): 84 x 34 x 30 in
